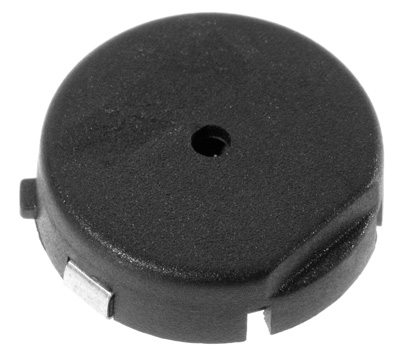

TP204003-1
Piezo Transducer
| Description | Units | Value |
|---|---|---|
| Technology | Piezo | |
| Resonant Frequency | (Hz) | 4000 |
| Rated Voltage | (V) | 3 |
| SPL @ 10cm | (dBA) | 80 |
| Height | (mm) | 5.20 |
| Width | (mm) | 20.00 |
| Length | (mm) | 20.00 |
| Mount Type | Surface Mount | |
| Sound Port | Top | |
| Washable | No | |
| RoHS |  | |
| Max Input Voltage | (V) | 25 |
| Voltage Range | (V) | 1 ~ 25 |
| Max Rated Current | (mA) | 5 |
| Capacitance | (pF) | 6,500 ± 30% |
| Housing Material | LCP | |
| Housing Color | Black |
