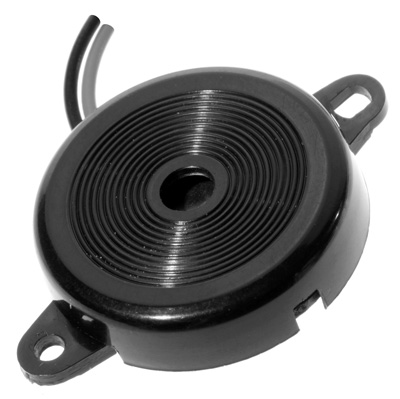

TP244003-1
Piezo Transducer
| Description | Units | Value |
|---|---|---|
| Technology | Piezo | |
| Resonant Frequency | (Hz) | 4096 |
| Rated Voltage | (V) | 3 |
| SPL @ 10cm | (dBA) | 75 |
| Height | (mm) | 5.50 |
| Width | (mm) | 24.00 |
| Length | (mm) | 24.00 |
| Mount Type | Flange Mount | |
| Sound Port | Top | |
| Washable | No | |
| RoHS |  | |
| Max Input Voltage | (V) | 30 |
| Voltage Range | (V) | 1 ~ 30 |
| Max Rated Current | (mA) | 5 |
| Capacitance | (pF) | 10,000 ± 30% |
| Housing Material | ABS | |
| Housing Color | Black |
